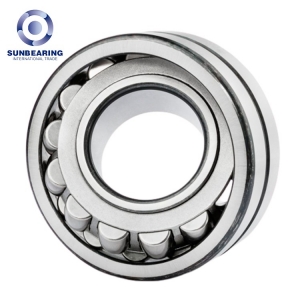

22314 Spherical Roller Bearing 70*150*51mm with Cylindrical Bore SUNBEARING

22314  Spherical Roller Bearing 70*150*51mm with Cylindrical Bore SUNBEARING Product Specification Bore diameter: 70 mm Basic dynamic load rating 413 kN Outside diameter: 150 mm Basic static load rating 430 kN Overall width:  51 mm Fatigue load limit 45 kN Rows of Rollers Double Reference speed 3400 r/min Outer ring type: Unsplit Limiting speed 4500 r/min Radial clearance class CN (Standard) Mass 4.3 kg Closure type: Open r1,2 min. 2.1 mm Material Chrome Steel da min. 82 mm Cage Material Sheet Steel Da 25 mm Designation, adapter sleeve H2314 ra max. 2 mm 22314 Bearing Short Description This 22314-K spherical roller bearing is a high-quality and premium bearing that is manufactured to strict quality control standards. It features a 70-millimeter tapered bore and will be supplied with the standard W33 Lube Groove unless otherwise requested, 22314-K bearings use the H2300 series adapters. Spherical Roller Bearing Features Why spherical roller bearings? Spherical roller bearings offer an attractive combination of design features, which are making them irreplaceable in many demanding applications. Self-aligning Spherical roller bearings accommodate misalignment between the shaft and housing without increasing friction or reducing bearing service life. Very high load-carrying capacity Optimized internal geometry within the available cross-section provides maximum radial and axial load carrying capacity. Robust Insensitive to misalignment caused by shaft or housing deflections as a result of heavy loads. Easily fitted for loads in all directions The bearings are non-separable and ready to install, having a choice of mounting methods. This kind of roller bearings is developed for customer satisfaction. The best confirmation of the total quality of 22314 spherical roller bearings is their success on the market. There are twice as many spherical roller bearings in service as those of any other bearing manufacturer. This is not just by chance: Spherical roller bearing
